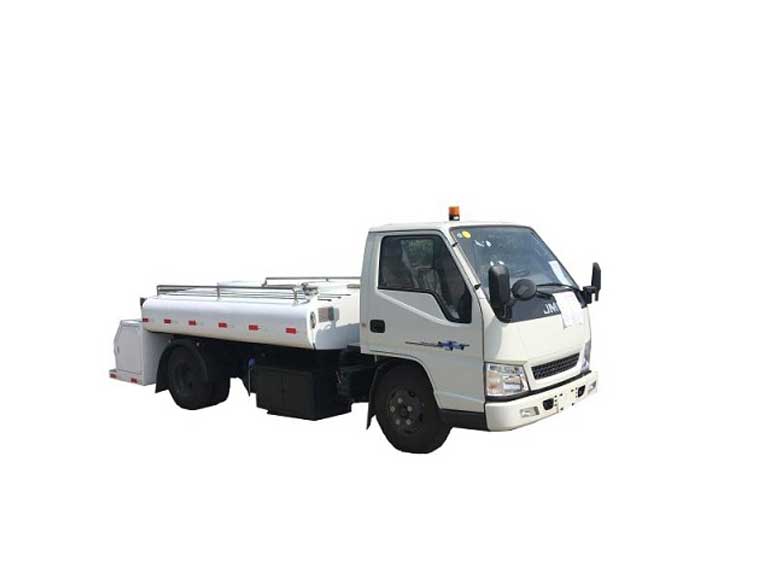

Aircraft Clean Water Truck (Diesel Type) | |
Aircraft Clean Water Truck (Diesel Type) is designed as a rear mounted lifting platform with a large capacity water tank in the middle. The chassis cab of this product is a flat head, single row seat, two door type, with two passengers; The driving type is 4 × 2, and the capacity of the clean water tank is 4.0m ⊃3;, The maximum flow rate of clean water supply is>130L/min. Aircraft Clean Water Truck (Diesel Type) technical parameters verall dimensions of the vehicle(length x width x height): 6530×1900×2150 External dimensions of the container(length x width x height) :3200×1900×760 Clear water tank capacity :4000L Chassis Model: JX1061TG25 Engine model :JX493ZLQ5 Vehicle curb weight: 2950kg Front axle load (unloaded/fully loaded) :1040kg / 1140kg Rear axle load (unloaded/fully loaded): 1910kg /3910kg Total water tank weight when fully loaded :6950kg Fuel consumption per 100 kilometers: ≤12L Outer diameter of the channel circle: 14000 mm Departure angle: 11° Approaching angle: 24° Ground clearance :205mm Clear water supply pressure: 0.345MPa Hydraulic system working pressure :10MPa Hydraulic oil tank capacity :78L Hydraulic oil model: 32#Aviation ground hydraulic oil Diesel tank capacity 100L Tire Size: 7.00R16 Voltage: 12V(Two batteries connected in series) Jiangsu Tianyi Aviation Industry Co., Ltd. Factory: No.2 Hang Kong Road High-tech zone, Jianhu county, Yancheng City, Jiangsu Province, P.R.China Shanghai Office: Room 1103, Building 35, No. 1399 Jiasong Middle Road, Qingpu District, Shanghai, China Tel: +86 21 50496068 / +86 21 50496058 / +86 400 9980 919 Mobile: +86 137 -6133 -5725 (As WeChat) +86-134 -7248 -8657 +86-195 -1651 -9903 +86-137 -7424 -8052 E_ mail: joinsun@jstianyi.com.cn airport.gse@jstianyi.com.cn Website: www.tianyi-gse.com ![]() | |
