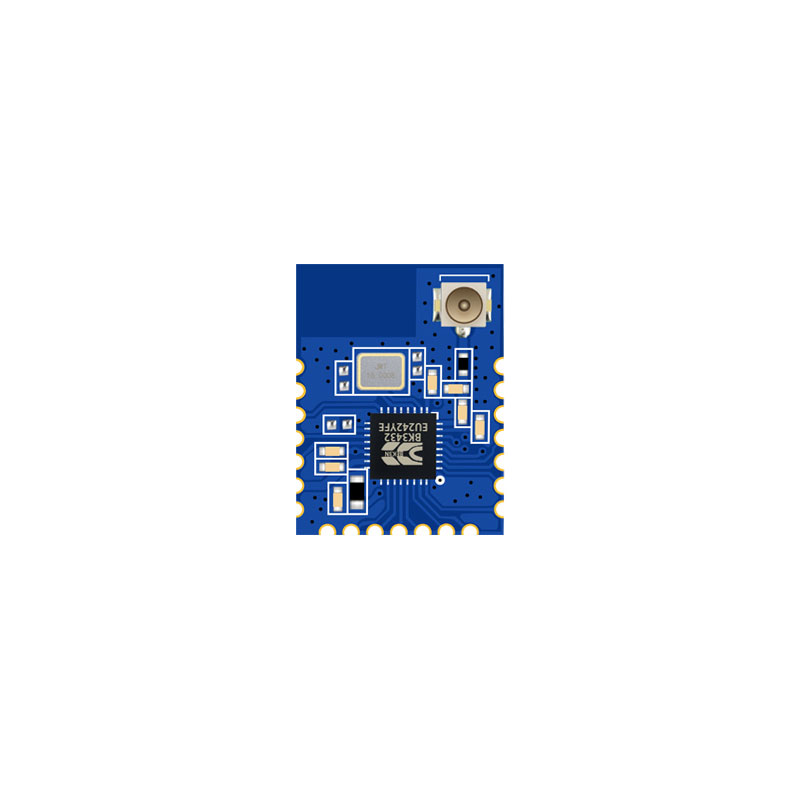

Excellent stability, low cost and low power consumption Bluetooth module TS-M1029D | |
The TS-M1029 is a compact dual-mode Bluetooth module, featuring a Bluetooth 5.0 chip that supports the Bluetooth BLE 4.2 protocol. The dual-mode firmware is compatible with both BLE and SPP protocols and supports AT commands. Users can utilize the provided AT commands to customize serial port baud rates, device names, and other parameters. Additionally, the module’s IO ports can be controlled directly through an app by sending data, offering flexible operation and simple usage. This module boasts excellent stability, ultra-low cost, minimal power consumption, and high reception sensitivity, making it suitable for a wide range of customer development projects. Model No.: TS-M1029D Features Bluetooth Version: BLE 4.2+SPP 3.0 Frequency Band: 2.402GHz-2.480GHz ISM band TX Power: -20dBm~+4dBm Receive Sensitivity: -97dBm Air Rate: 250Kbps/1Mbps/2Mbps Antenna: IPEX Antenna Advise Range: 80m Memory: 160KB FLASH+20KB RAM Size: 17*13*1.5mm Pin/GPIO: 21/16 Power Supply: 1.8~3.6V Operating Temperature: -40℃~+85℃ Peripheral Interface: UART/SPI/I2C/ADC Serial Transparent Transmission Rate: BLE 4KB/s, SPP 16KB/s Applications Smart home Location tracking Intelligent educational equipment Measurement and monitoring system Industrial sensors and controls Medical equipment monitoring and wireless control  | |
| Related Link: Click here to visit item owner's website (0 hit) | |
| Target Nation: All Nations Target City : All Cities Last Update : 22 April 2025 10:29 AM Number of Views: 27 | Item Owner : Tecksay Bluetooth module Contact Email: Contact Phone: +86 17665329688 |
